San Francisco Solar Monitoring Stations

ID
SF01
SF02
SF03
SF04
SF05
SF06
SF07
SF08
SF09
SF10
SF11
SF12
SF14
SF15
SF16
SF17
SF18
SF19
SF20
SF21
SF22
SF23
SF24
SF25
SF26
SF27
SF32
U
Name
Washington High School
Marina Middle School
North Point Water Pollution Control Plant
Lincoln High School
Ida B. Wells High School
525 Golden Gate
Laguna Honda Hospital
Everett Middle School
SF General Hospital
Southeast Water Treatment Plant
Hillcrest Elementary School
Sunol
Visitation Valley Middle School
Warnerville Switchyard
SF Zoo
Pulgas Reservoir, San Mateo
Pier 40
MUNI Building - 1080 Minnesota
Moccasin Peaks
Maxine Hall Health Center
City College Science Bldg
Chinatown Health Center
Chinatown Library
City Distribution Div
Moscone - Powerlight
North Point Facility
SF Judiciary Bldg
Urban School of San Francisco
Location
600 32nd
3500 Fillmore
110 Bay Street
2162 24th Ave
1099 Hayes St
525 Golden Gate
375 Laguna Honda
450 Church
10001 Portrero
750 Phelps
810 Silver
Sunol
450 Raymond
Oakdale
1 Zoo Rd
Canada Road
Pier 40
1080 Minnesota
Moccasin Peaks
1301 Pierce
50 Phelan Ave
1410 Mason
1135 Powell
1990 Newcomb
747 Howard St
110 Bay St
850 Bryant
1563 Page St.
Years
7.3
7.8
5.6
5.5
4.2
1.4
5.8
7.0
4.6
5.4
3.5
4.0
4.0
3.9
4.0
4.0
4.1
4.1
3.4
3.1
3.8
3.4
3.0
3.2
7.0
3.1
2.3
7.0
kWh/m2/day
4.12
4.59
4.58
4.12
4.61
4.82
4.12
4.41
4.58
4.44
4.50
5.01
4.79
5.04
4.15
4.95
4.64
4.65
5.05
3.79
4.23
4.30
4.47
4.31
4.45
4.83
4.54
4.28

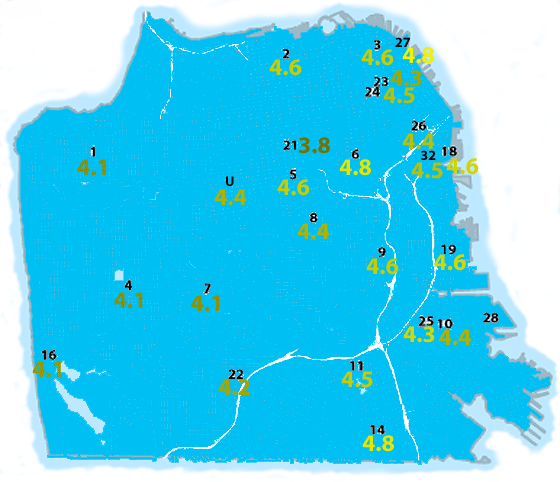

map of San Francisco solar monitoring stations

The chart contains information for the SFPUC solar monitoring sites that have at least one year of data as of 8/17/11 (Urban School data is 2006 through 2012) and the map shows the location and insolation kWh/m2/day for 24 sites in San Francisco.  The brightness of the kilowatt hour numbers varies with the insolation.  Differences in nearby stations may be due to different time periods monitored for each station, missing data, differences in the pyranometers, shading, or "microclimates."  Data (without dates) is obtained from http://216.119.104.145/cfapps/solar/WDLYear.xml  although this data has not been updated since 2011.  Solar irradiance data is also available from http://www.datasf.org/story.php?title=san-francisco-wind-monitoring-data-2 but is incomplete.
